DK’s Modular Cart Filling Station

MODULAR & EASILY CLEANABLE INSERT SYSTEM

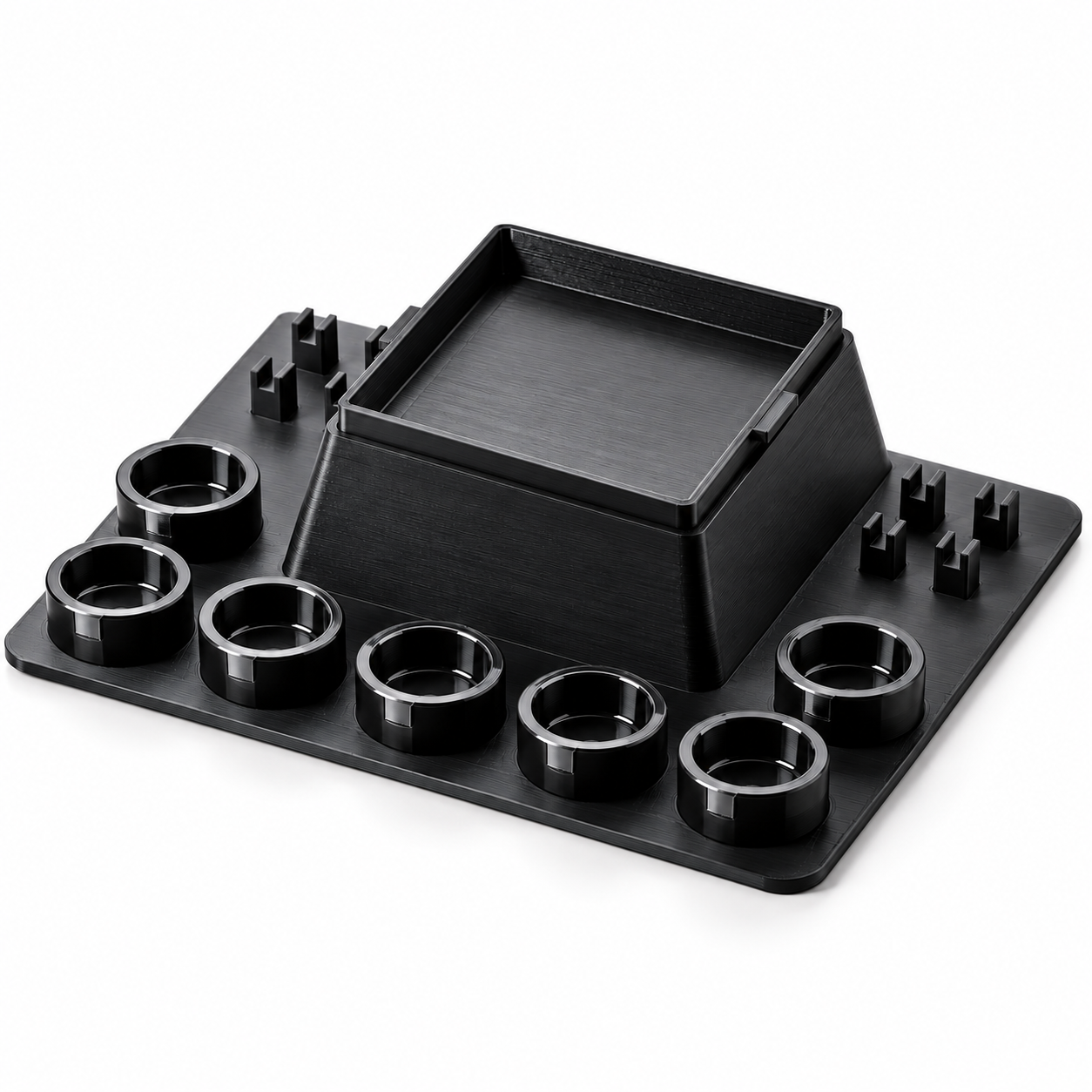

One of the key features of the station is its removable modular insert system.

Rather than permanently integrating every holder into the main tray, the beaker and cartridge components can be removed independently. This provides better access when cleaning the workstation and makes individual components easier to handle away from the main station.

The removable beaker holders are especially useful when working between different areas of the bench because an individual beaker and its supporting insert can be moved without carrying the complete cart filling station.

DESIGNED FOR STANDARD 1 mL CART FOAM SLABS

The removable cartridge tray insert is designed around the basic foam slab format used for standard 1 mL cartridges commonly sold and found throughout the market.

This allows a full foam slab of upright cartridges to be positioned as a single organized unit instead of transferring individual carts into a proprietary holder one at a time.

Foam slab dimensions, cartridge spacing and hole diameters can vary slightly between manufacturers, so customers using an alternate tray should confirm fitment before production use.

100 mL BEAKER COMPATIBILITY

The seven removable beaker inserts were developed around these

ULAB 100 mL Borosilicate Glass Beakers

The linked ULAB beakers are 100 mL low-form 3.3 borosilicate glass beakers and are the reference beaker used when designing the station.

The beaker inserts are intended for compatible 100 mL low-form beakers with an outside diameter of approximately 51 mm or less.

Each beaker sits inside its own removable support insert, making it considerably easier to lift out, move around the work area, fill, handle or clean without moving the entire station.

Beaker dimensions can vary between manufacturers even when the listed capacity is the same. If using a different brand, confirm the outside diameter before ordering.

7 INDIVIDUAL BEAKER POSITIONS

The station contains 7 dedicated removable beaker inserts, providing room to organize multiple mixtures, flavours, batches or supporting materials within the same workstation.

Because every insert is independent, a beaker can be removed without disturbing the other six positions.

This modular arrangement makes it easier to keep different beakers organized while still allowing individual vessels to be moved wherever they are needed.

BUILT-IN HOLDERS FOR 4 DAB TOOLS

The filling station includes four dedicated dab tool holders built directly into the workstation.

Instead of leaving tools loose across the workbench, frequently used filling and handling tools can remain upright, organized and within immediate reach.

Dedicated tool storage helps reduce clutter and keeps more of the filling workflow contained within one organized production station.

A CLEANER & MORE ORGANIZED WORKSPACE

Cartridge filling can quickly create a cluttered workspace when beakers, cart trays and tools are all being used simultaneously.

The DK Cart Filling Station gives each major component a dedicated position while still preserving the flexibility of a modular system.

The result is a more organized workstation with less loose equipment, easier access to tools and simpler cleanup between filling sessions.

DURABLE PETG CONSTRUCTION

The Cart Filling Station is manufactured from durable PETG, selected for its useful combination of toughness, functional strength and impact resistance compared with more brittle basic 3D printing materials.

The main station and modular components are designed as reusable production equipment for repeated cartridge filling and workstation organization.

THE DK CART FILLING WORKFLOW

Instead of working with loose beakers, tools and cartridge trays spread across your work surface, the DK Modular Cart Filling Station combines the essential organization of the process into one dedicated workstation.

ORGANIZE IT. FILL IT. CLEAN IT. REPEAT.

FILL CLEANER. WORK FASTER.

PRODUCT DETAILS

PRODUCT NAME: DK’s Modular Cart Filling Station

CATEGORY: 3D Printed Production Equipment

PRIMARY USE: Cartridge Filling Organization & Workstation

CONSTRUCTION: Durable PETG 3D Printed Components

DESIGN: Modular / Removable / Easily Cleanable

BEAKER INSERTS: 7 Removable Inserts

BEAKER CAPACITY: Designed Around 100 mL Low-Form Beakers

MAXIMUM BEAKER DIAMETER: Approx. 51 mm Outer Diameter

REFERENCE BEAKER: ULAB 100 mL Borosilicate Glass Beaker

CART INSERTS: 1 Removable Foam Slab Insert

CART FORMAT: Common Standard 1 mL Cart Foam Slab

DAB TOOL HOLDERS: Up to 4 Tools

REUSABLE: Yes

BRAND: DISTILLATE KINGZ

ONE STATION. ONE ORGANIZED WORKFLOW.

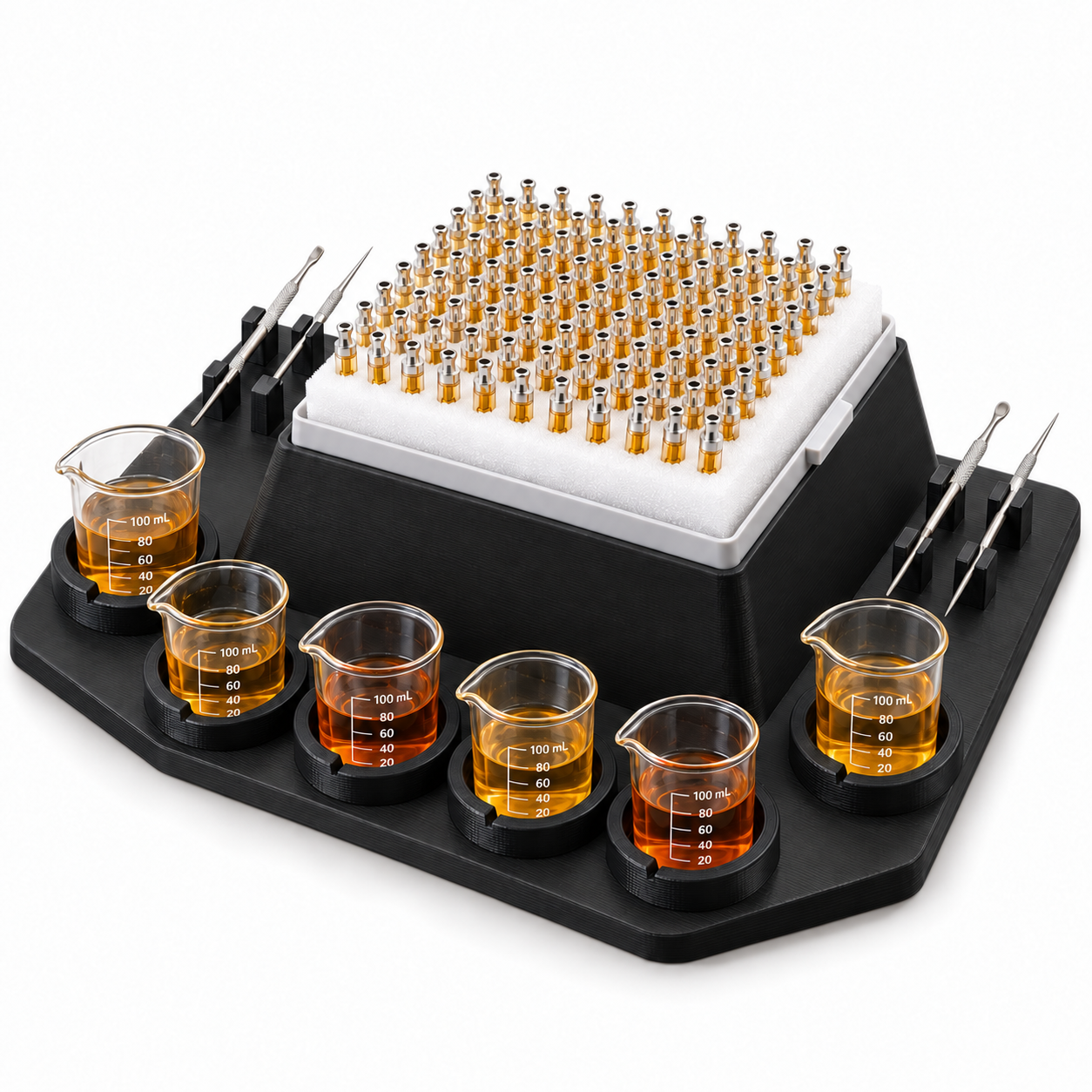

Seven removable beaker inserts, one standard 1 mL cart foam slab insert, four built-in dab tool holders and a modular easy-clean design come together in one reusable PETG workstation built to make cartridge filling cleaner and more organized.

HOW TO USE THE CART FILLING STATION

1. INSTALL THE BEAKER INSERTS: Place the removable beaker holders into their dedicated positions in the main workstation.

2. ADD YOUR BEAKERS: Place compatible 100 mL low-form beakers into the inserts.

3. LOAD THE CART TRAY: Place a compatible standard 1 mL cartridge foam slab into the dedicated removable cart insert.

4. ORGANIZE YOUR TOOLS: Place up to four compatible dab tools into the integrated tool holders.

5. FILL YOUR CARTS: Keep beakers, cartridges and tools organized within the station while completing your normal filling workflow.

6. REMOVE INSERTS AS NEEDED: Individual beaker holders can be lifted out whenever a beaker needs to be moved, handled or worked with separately.

7. CLEAN & RESET: Remove the modular components after use for easier access during cleaning and prepare the workstation for the next filling session.
